Design of WIDE Internet FAX

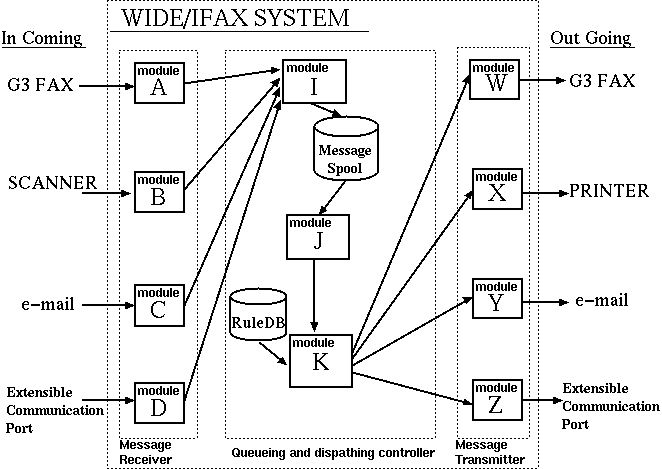

WIDE/IFAX (WIDE Internet FAX) consists of three parts:
- Message Receiver
- Message Spooler/Dispatcher
- Message Transmitter
Message Receiver
The Message Receiver consists of some submodules that receives
messages via FAX, e-mail, scanner and so on. These submodules post
the received messages into message spool.
Message Spooler/Dispatcher
The Message Spooler pick a message up sequentially, and pass it to
Message Dispatcher. Message Dispatcher analyzes rule data base and
pass the message to corresponding submodules of Message Transmitter.
Message Transmitter
Message Transmitter consists of some submodules that transmit the
message to FAX, e-mail, printer and so on.
Extensible Port
The WIDE Internet FAX has its own communication function with external
modules in order to easily include new functions. It is possible to
attach many interfaces for input/output, for instance, a client using
Java or CGI-bin, a client which forwards input from a PDA, etc. It is
possible to make the WIDE Internet FAXes directly communicate with
each other through these ports.
