Overview of stetho
stetho --- network stethoscope
Observating network traffic is important job of administrators. This
job is usually difficult. Because, network traffics are changing
continiously, and the amount is too much. Watching the graphical
or lexical representation is hard to do.
We have introduced the system which present network traffics as
sounds. We call this system as "Network stethoscope system".
Observation of traffics is similar to doctor's medical examination, isn't it.
We are developing a network stethoscope system, "stetho".
Stetho receives tcpdump messages, analys them, and produce corresponding MIDI
messages.

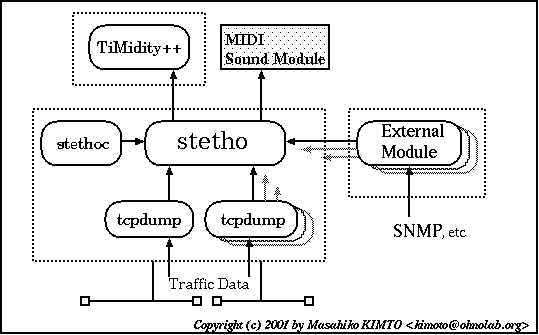

The following is brief diagram of stetho 1.1.x.
stethocast
Stethocast is a system which provides uni/broadcasting service of
sound of stetho on networks.
It includes stetho and other softwares such as MIDI sound modules,
encoder, broadcasting server, etc.
Currently, there are two type of the system, stethocast/Real which uses
RealSystem and stethocast/MP3 which provides MP3 streams

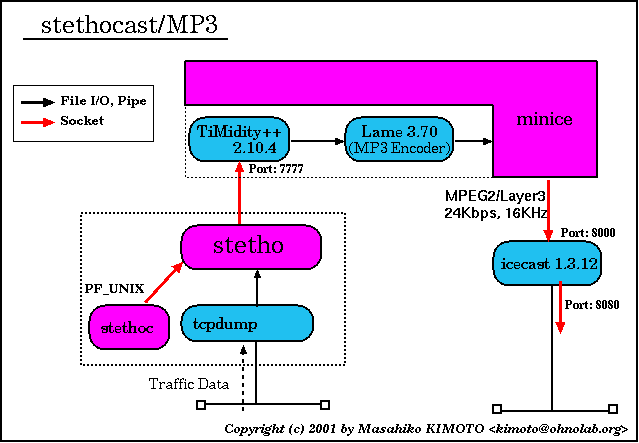

The following is a brief diagram of stethocast/MP3.
Netsound
NetSound
is a media art which is created by us and
Sensorium team.

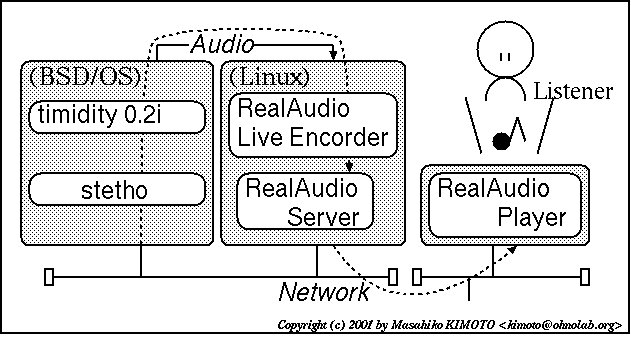

The following is a brief diagram of netsound.
Then, what's the relation of these?
Simply to say, the relation of these are;
- Stetho is a SOFTWARE, which converts network traffic to MIDI messages.
- Stethocast is a SYSTEM PACKAGE, which uni/broadcast the sound
provided by stetho.
- Netsound is one of the ARTS which is using stethocast.
Masahiko KIMOTO <kimoto@ohnolab.org>
Last modified: Thu Jan 24 16:31:30 2002
